Bumps likec4 from 1.59.2 to 1.60.0.

Release notes

Sourced from likec4's releases.

v1.60.0

🚀 Features

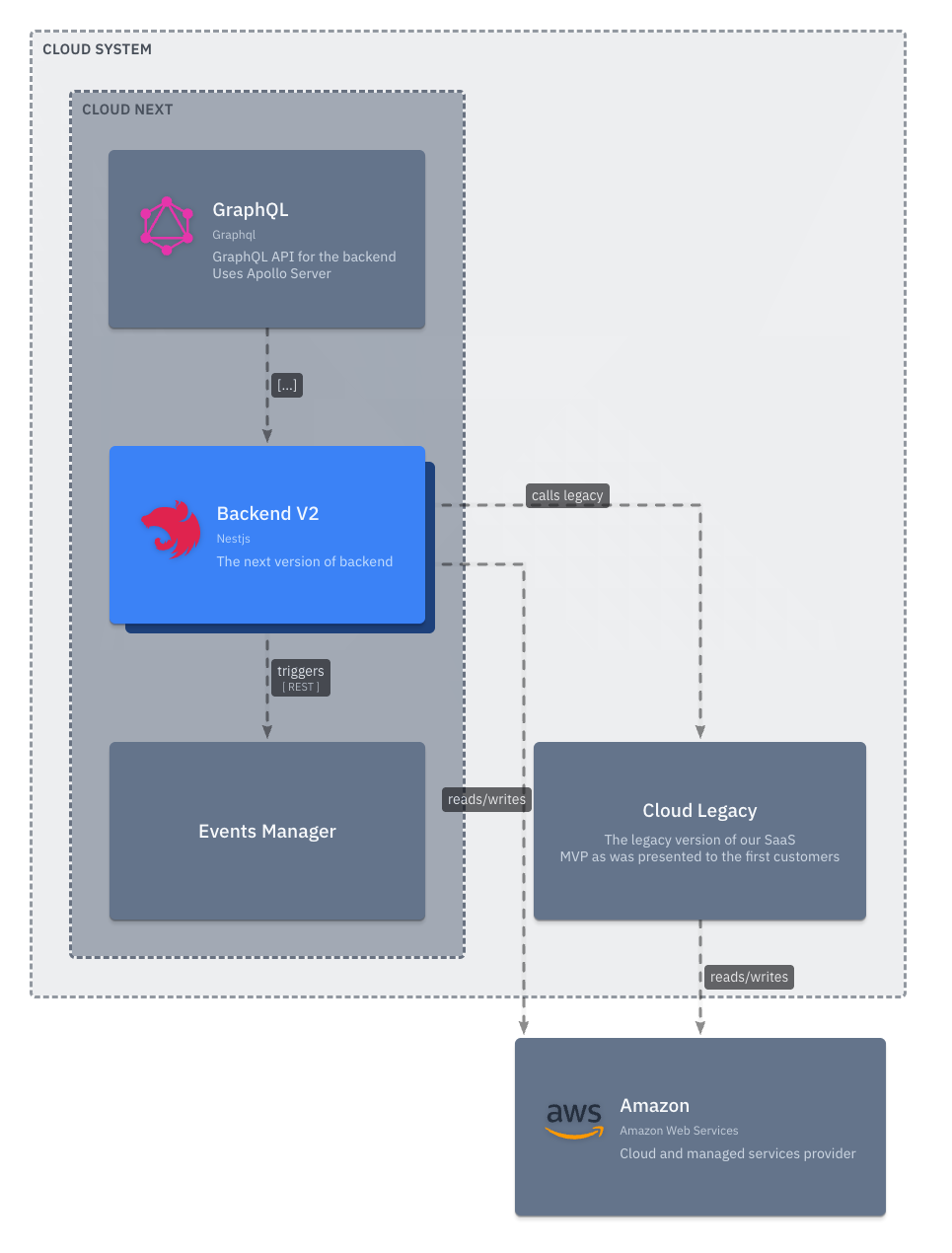

• Orthogonal Edge Routing:
  Relationships can now be drawn with horizontal and vertical segments. Set routing ortho in a view, append ortho to autoLayout, or set styles.defaults.view.routing in the project configuration (default remains spline). Edge labels are placed beside long straight segments, shared segments of edited edges are separated into tracks, and routing can be switched from the diagram editor's layout panel. Changing routing preserves saved node positions and control points. Thanks @​alexhelkar #3278



• Fixed Element Sizing:
  New sizing style property for elements. With sizing fixed, all elements of the same size are drawn with exactly the same width and height; long titles and icons shrink to fit. The default sizing auto keeps the current behavior. Thanks @​AndersHogqvist #3289

• Graph Display Variant:
  New "Graph" variant for element views, alongside "Diagram". Elements are rendered as compact circles with straight relationship lines, draggable and animated with a physics-based simulation. Switch with the new toggle in the navigation panel. Thanks @​m-arrieta-r #3223

• navigateTo in Deployment Views:
  Support include ... with { navigateTo ... } in deployment views, so deployment nodes and instances can link to subsystem views. Thanks @​AndersHogqvist #3305

• New agent Element Shape: #3310



• DSL Generator Emits Views:
  The LikeC4 DSL generator now emits views, including dynamic views with loop, opt, par and break blocks, step titles and descriptions. printOperation is renamed to print. #3363

• Docs Brazilian Portuguese translation: #3178
  Send your kudos to @​rodri-oliveira-dev

🐞 Bug Fixes

• Fixed with overrides not being applied to relationships matched by a where metadata.* condition, closes #3301. Thanks @​andrewwbuilds #3342
• Fixed Element @project not found error for relationships between imported top-level elements from the same project. Thanks @​luantaraschi #3300
• Fixed rank constraints having no effect when changed in an existing view, closes #3211. Thanks @​kindasorrow #3356
• Fixed the caret jumping to the end of the search input (Ctrl+K), closes #3298. Thanks @​andrewwbuilds #3344
• Fixed long metadata values in the element details dialog not being truncated, closes #3279. Thanks @​cry999 #3295
• Fixed tooltips in the element details dialog rendering behind the backdrop, closes #3256. Thanks @​cry999 #3280

Full Changelog: likec4/likec4@v1.59.4...v1.60.0

v1.59.4

🚀 Features

• Redesigned Sequence Walkthrough Outline:
  The current step is lifted onto its own card with a larger label, the participants it connects, and its notes rendered inline. Nested fragments now read as depth — the loop / par / alt / try you are standing inside is framed and tinted in the colour the canvas draws that frame with, while levels above and below step back. The outline animates between steps, and breadcrumb segments are clickable, so you can jump back to the first step of an enclosing fragment in one click. Motion is skipped under reduced motion and while panning.

• Zoom and Viewport Control for Embedded Diagrams:
  New minZoom and maxZoom props control the zoom range of embedded diagrams, and the view renders on the first paint instead of starting from an empty canvas. Embedded diagrams can also start centered at a caller-defined zoom, and render-view callers can set the initial canvas size hint and viewport behavior. #3249

• Better Write-back of UI Edits:\

... (truncated)

Changelog

Sourced from likec4's changelog.

1.60.0

Patch Changes

• #3310 1fb8e00 Thanks @​davydkov! - Add new agent element shape

• #3278 3e1abd7 Thanks @​alexhelkar! - Switch edge routing between spline and ortho from the diagram editor's layout panel. The choice is written to the view source as the routing property or as the autoLayout routing parameter, and stays available for views with a manual layout. Changing the auto-layout direction no longer drops a routing parameter set on the autoLayout rule.

• #3289 2bf291e Thanks @​AndersHogqvist! - Add sizing style property for elements. With sizing fixed, all elements of the same size are drawn with exactly the same width and height, regardless of title, description, icon or shape. Long titles and icons shrink to fit the element instead of making it grow. The default sizing auto keeps the current behavior, where size is the minimum size.

  specification {
    element service {
      style {
        size small
        sizing fixed
      }
    }
  }


• #3278 3e1abd7 Thanks @​alexhelkar! - Add orthogonal edge routing to draw relationships with horizontal and vertical segments. Set routing ortho in a view, append ortho to autoLayout, or set styles.defaults.view.routing in the project configuration. The default remains spline. Changing routing preserves saved node positions and connection control points.

  Place automatic labels beside long straight segments, avoiding nodes, other labels, and relationship lines where space permits. Labels update after layout and node moves. Manually positioned labels retain their position or offset during editing.

  Separate shared segments of edited orthogonal edges into tracks with a target spacing of 12 diagram units. Track shifts also separate connection points along node borders, subject to the space available at each endpoint.

  Keep edited edge labels centered under spline routing, preventing the initial jump by half the label's size.

  Keep labels and separated tracks aligned with edited edges when connection handles are offset from node centers.

• Updated dependencies [3e1abd7, 1c22fb0, a25fcfa, feb3f4e, 1332900, 2bf291e, 3e1abd7]:

  • @​likec4/core@​1.60.0

1.59.4

Patch Changes

• #3238 6bfec95 Thanks @​cry999! - Respect a dynamic view's configured variant when the URL does not explicitly select one

• #3267 488d850 Thanks @​chiliec! - Allow hiding element and relationship title/technology in views via an empty string in with { ... }

• Updated dependencies [4e6ee7a, add966b, f0f3ec6]:

  • @​likec4/core@​1.59.4
  • @​likec4/icons@​1.46.4

1.59.3

Patch Changes

• 2f41d09 Thanks @​davydkov! - Add likec4 publish to upload Graphviz-layouted models to LikeC4 Cloud as a snapshot of the current commit. Publishes every project in the workspace by default, or a single one with -p. Repository, commit, branch and tag are read from git and from GitHub Actions environment variables, and can be overridden with --origin, --sha, --branch and --tag. Authenticate with --token or the LIKEC4_PUBLISH_TOKEN environment variable; point at another instance with --url or LIKEC4_CLOUD_URL. Validation errors block the publish unless --force is passed. Publishing the same commit again overwrites its snapshot, and projects accumulate into it.

... (truncated)

Commits

• 0375d14 release: v1.60.0
• 3cff21d Merge branch 'refactor-build-pipeline'
• 3e1abd7 feat: orthogonal edge routing for views (#3278)
• 9964537 fix: playwright evaluate typing in png export
• dc32fb5 refactor build pipeline
• 5385c57 clean prev artifacts
• 57c70ef feat: improve generators (#3363)
• d241cb5 chore(deps): update dependency autoprefixer to ^10.6.1 (#3345)
• 6d30b10 fix(deps): update dependency yargs to v17.7.3 (#3328)
• b222e32 Merge branch 'main' of github.com:likec4/likec4
• Additional commits viewable in compare view
